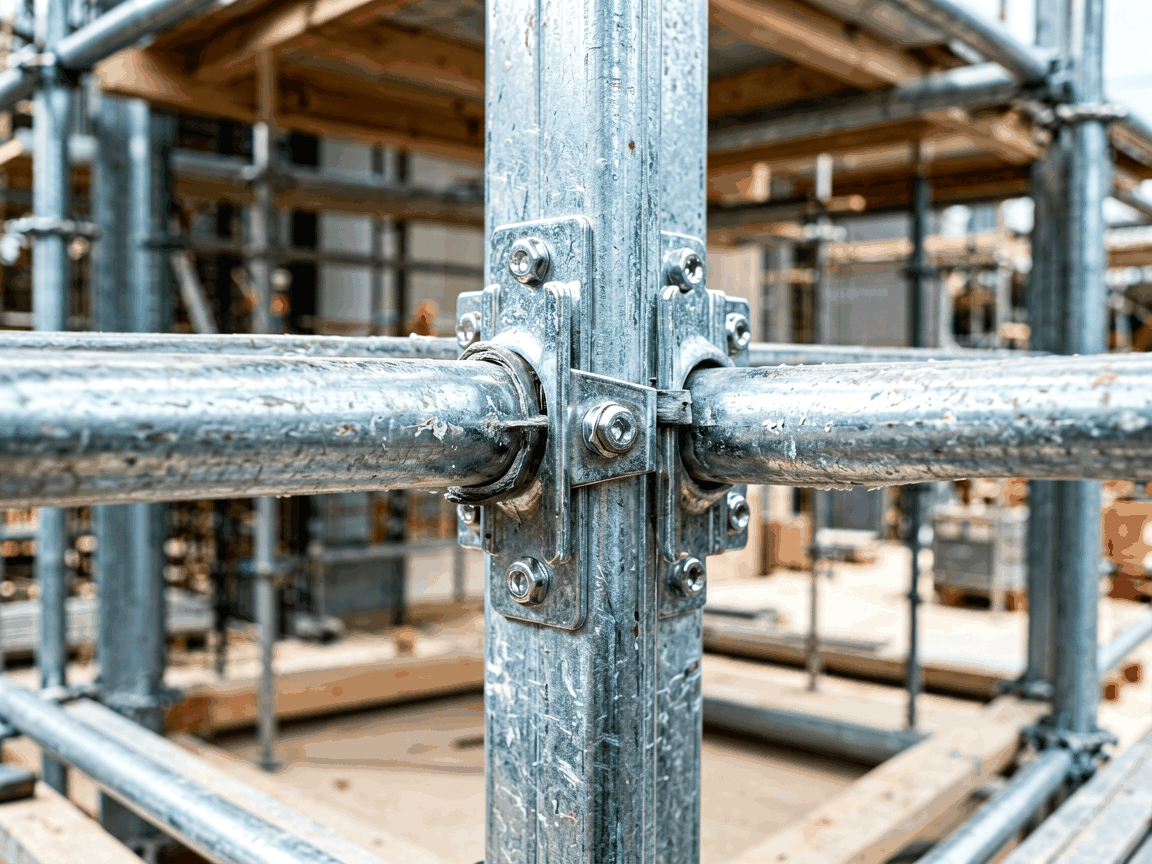

Metal panel clamps for shuttering are mechanical fastening devices designed to secure formwork panels to supporting structures during concrete pouring operations. They provide temporary yet rigid connections that resist lateral pressure from fresh concrete while allowing for quick installation and removal. These clamps are essential in maintaining dimensional accuracy and surface quality of cast-in-place concrete elements such as walls, columns, and slabs.
The clamping mechanism typically combines a threaded adjustment system with a load-bearing jaw or hook that engages the panel edge or rib. Force is transferred through the clamp body into the supporting waler, soldier pile, or strongback. Design considerations include safe working load, deflection under load, and compatibility with panel thickness and profile geometry. Most clamps are engineered to handle lateral pressures ranging from 40 to 80 kN/m² depending on concrete pour rate and height.
Effective shuttering clamps incorporate several interdependent design elements to ensure performance under cyclic loading. The jaw geometry must match the panel’s flange or stiffener to prevent slip or deformation. Threaded spindles with acme or trapezoidal threads allow precise adjustment and high mechanical advantage. Swivel pads or spherical washers accommodate minor misalignments between panel and support, reducing edge stress concentrations.
Material selection focuses on strength-to-weight ratio and durability. High-tensile steel grades such as S355 or equivalent are commonly used for load-bearing components, while wear-resistant inserts may be added at contact points. Corrosion protection is achieved through hot-dip galvanizing or epoxy coating, especially for reusable systems exposed to wet concrete and alkaline environments. Clamp weight is optimized to balance handling ease with stiffness—typically ranging from 1.2 to 3.5 kg per unit depending on size and load class.
Safety features include positive locking mechanisms to prevent accidental loosening due to vibration or settlement. Some designs incorporate visual indicators or torque-limiting elements to help installers achieve correct preload without over-tightening, which could damage panel edges or induce premature fatigue in the clamp body.
The safe working load (SWL) of a metal panel clamp is determined through static testing and finite element analysis, considering both tensile and shear components of the applied force. Manufacturers typically rate clamps based on laboratory tests simulating worst-case concrete pressure scenarios. Values are derated for dynamic effects and long-term reuse to ensure adequate safety margins.
| Load Class | Typical SWL (kN) | Applicable Panel Thickness (mm) | Max Pour Height (m) |
|---|---|---|---|
| Light Duty | 15 | 18–25 | 2.5 |
| Medium Duty | 25 | 25–35 | 3.5 |
| Heavy Duty | 40 | 35–50 | 5.0 |
Deflection under load is another critical parameter. Excessive clamp deformation can lead to panel misalignment, resulting in uneven concrete surfaces or gaps at joints. Design targets usually limit elastic deflection to less than 1.5 mm at SWL to maintain dimensional tolerances within Class A finish requirements per EN 13670 or equivalent standards.
Fatigue resistance is evaluated for systems intended for high-cycle reuse. Clamps undergo cyclic load testing (typically 5,000–10,000 cycles at 60–80% SWL) to verify absence of crack initiation in high-stress zones such as thread roots or weld joints. Material traceability and heat treatment records support traceability for quality audits.
While carbon steel is standard for most shuttering clamps, alternative materials are available for specific environmental or regulatory conditions. Stainless steel grades (e.g., 304 or 316) are used in projects requiring prolonged exposure to chlorides, such as marine structures or wastewater treatment plants, where corrosion-induced strength loss must be minimized.
For applications involving magnetic formwork systems or proximity to sensitive equipment, non-magnetic austenitic stainless steel or aluminum alloys may be specified. Aluminum clamps offer significant weight reduction—up to 60% lighter than steel equivalents—but require larger cross-sections to compensate for lower modulus and yield strength. They are typically limited to low-to-medium pressure applications unless reinforced with steel inserts.
Compatibility with panel type is essential. Clamps must match the geometry of the formwork system—whether steel-faced plywood, aluminum frame, or modular plastic panels. Interface dimensions such as jaw opening, throat depth, and contact angle are customized to suit common systems like Peri, Doka, MEVA, or local proprietary designs. Mismatched clamps can cause point loading, panel denting, or inadequate clamping force.
Efficient installation reduces labor time and minimizes errors on site. Clamps are designed for single-handed operation where possible, using wing nuts, ratchet handles, or quick-release levers. Adjustment ranges typically span 20–50 mm to accommodate varying panel thicknesses and support positions without requiring component changes.
Reusability depends on wear resistance and dimensional stability. Critical wear points include the spindle thread, jaw contact surface, and any locking elements. Manufacturers specify inspection intervals based on usage intensity—commonly every 50 cycles for high-pressure applications. Gauges or templates may be provided to check jaw opening and thread wear limits.
Lubrication of threaded components with concrete-release compatible grease prevents galling and maintains consistent torque characteristics. Proper storage—dry, sorted by size, and protected from impact—extends service life. Damage from dropping or misuse (e.g., over-tightening with impact tools) is a leading cause of premature retirement.
Reliability begins with material verification. Incoming steel is checked for mill certificates, chemical composition, and mechanical properties (yield strength, tensile strength, elongation). Critical components such as load-bearing jaws and spindles undergo 100% dimensional inspection to ensure conformance to drawing tolerances, which are typically held to ±0.5 mm for functional surfaces.
Load testing is performed on a sampling basis per batch. Prototypes are tested to destruction to validate design margins, while production units are proof-loaded to 1.5 times SWL with no permanent deformation or failure. Non-destructive methods such as magnetic particle inspection or dye penetrant testing may be applied to welds and high-stress areas depending on customer requirements.
Surface coating quality is assessed via adhesion tests, thickness measurement (using magnetic or eddy current gauges), and continuity checks for holidays. Galvanized coatings typically meet EN ISO 1461 standards with minimum zinc thickness of 55 µm for long-term reusability. Final assembly includes functional verification of moving parts and locking action.
Metal panel clamps are used wherever formwork panels must be securely attached to vertical or inclined supports during concrete placement. In wall systems, they connect sheathing to walers or strongbacks, resisting outward pressure that increases linearly with pour height. Proper clamp spacing—typically 600 to 800 mm centers—ensures uniform load distribution and prevents panel bowing between fasteners.
In column formwork, clamps secure inner and outer panels to yokes or clamps, maintaining precise axis alignment and preventing joint leakage that could cause honeycombing or grout loss. For suspended slabs and beams, similar principles apply to side forms, where clamps attach panel edges to dropheads or soffit supports. The ability to quickly adjust and release clamps supports efficient strike-out cycles in high-rise construction.
Beyond buildings, these clamps are employed in infrastructure projects such as tunnel linings, retaining walls, and bridge piers. In slipforming operations, specialized clamp variants allow continuous panel adjustment as the form rises. In precast yards, they secure side forms to pallets or strongbeds during casting and demolding. The adaptability of clamp design makes them suitable for both traditional timber-alternative systems and modern modular formwork.
Standard clamp configurations cover the majority of conventional shuttering needs, but project-specific conditions often require tailored solutions. Unusual panel profiles, limited access zones, or architectural concrete finishes may necessitate custom jaw shapes, extended spindles, or low-profile designs. Manufacturers work from customer-supplied panel drawings or site measurements to develop clamp geometries that ensure full contact and optimal load transfer.
Surface treatments can be adjusted based on exposure duration and environmental severity. For short-term use, standard galvanizing may suffice; for long-term rental fleets, duplex coatings (galvanizing plus epoxy) or thermal spraying may be specified. Identification options such as laser etching, stamping, or colored sleeves aid in inventory management and size segregation on busy job sites.
Technical support includes load calculation assistance, spacing recommendations, and compatibility verification with specified formwork systems. Providing detailed pour rates, concrete density, and panel dimensions enables accurate clamp selection and reduces the risk of under- or over-specification. Some suppliers offer on-site training or instructional videos to ensure correct installation practices are followed by crews.
