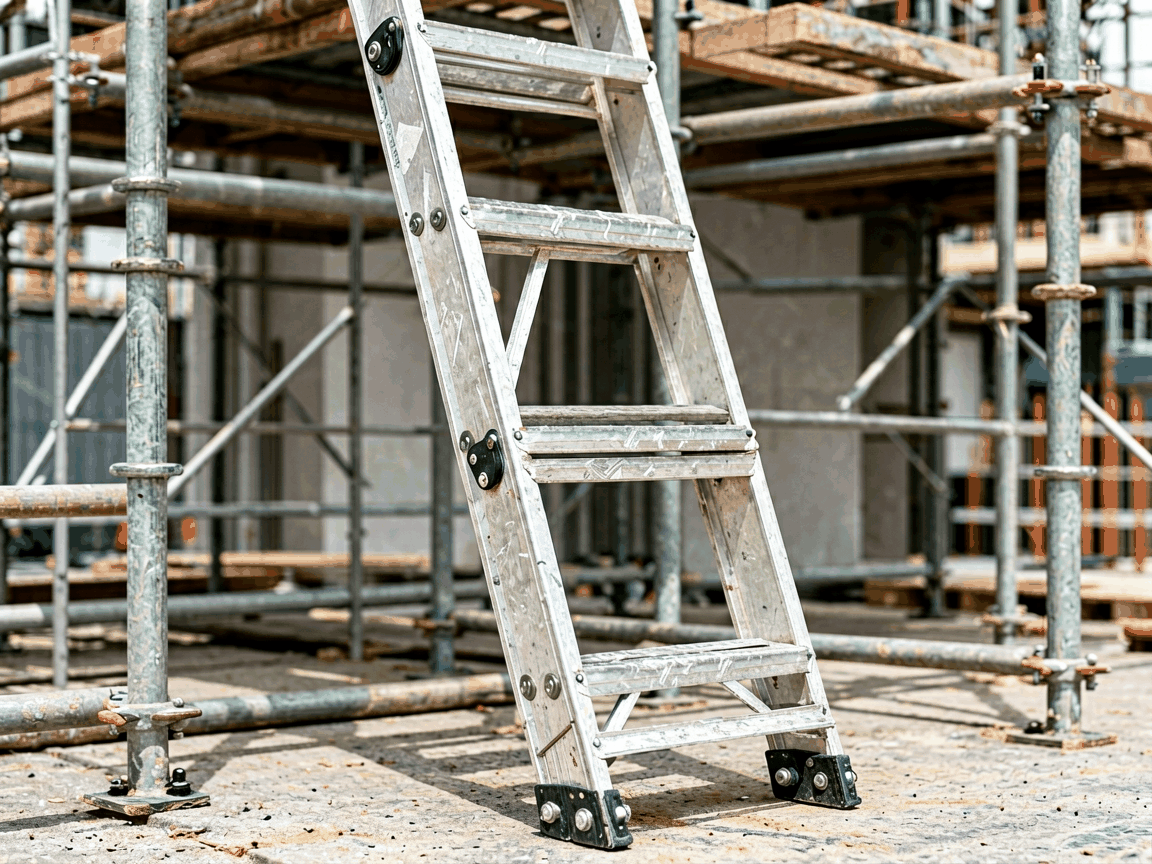

Ladder Attachments for Scaffolding

Ladder attachments for scaffolding are engineered interface components designed to securely connect portable or fixed ladders to tubular scaffold frames, enabling safe vertical access while maintaining structural integrity of the access system. These devices transfer ladder-induced loads—both vertical and lateral—directly into the scaffold’s load-bearing members, preventing slippage, rotation, or disengagement during use. Unlike improvised methods such as rope tying or friction-based clamping, certified ladder attachments incorporate positive mechanical locking mechanisms that resist disengagement under dynamic loads, including worker movement, tool impact, and wind-induced sway. Their design must comply with regional access regulations (e.g., OSHA 1926.451(e)(2) in the U.S., EN 12811-1 in Europe) which mandate specific load ratings, minimum engagement depths, and anti-displacement features for ladder-to-scaffold connections. Proper selection depends on scaffold tube diameter, ladder rail geometry, anticipated load conditions, and frequency of installation/removal cycles.

Effective ladder attachments function by creating a kinematically constrained joint between ladder and scaffold, eliminating degrees of freedom that could lead to accidental separation. The primary load path transfers the user’s weight (typically rated for 1–2 persons, or 1.5 kN per EN standards) through bearing surfaces that clamp onto the scaffold tube, while secondary mechanisms resist rotational and longitudinal movement. Most designs use a combination of U-bolts, threaded fasteners, or cam-action clamps to achieve initial positioning, supplemented by secondary locks such as spring-loaded pins, wedge blocks, or over-center toggles to prevent vibration-induced loosening. Material selection prioritizes high-strength steel grades (e.g., S355JR or equivalent) for load-bearing components, with corrosion protection via hot-dip galvanizing (minimum 55 μm zinc coating) or electro-galvanizing with chromate conversion coating for semi-protected environments. Attachment geometry must accommodate common scaffold tube sizes (48.3 mm OD being most prevalent globally) while allowing for tolerance stack-up due to manufacturing variations and coating thickness.

Ladder attachments must safely transmit both static and dynamic loads without inducing stress concentrations in the scaffold tube or ladder rails. Vertical loads from the ladder user are transferred via bearing plates or semi-circular saddles that distribute pressure over a sufficient arc length (typically >120° of tube circumference) to limit localized stress below the material’s yield strength. Lateral loads—generated during ascent/descent or tool use—are resisted by shear keys, interlocking lugs, or offset brackets that engage the scaffold tube’s geometry to prevent sideways displacement. Anti-displacement features often include a minimum 10 mm engagement depth beyond the tube’s centerline, ensuring that even if primary fasteners loosen, the attachment cannot fully disengage. Some designs incorporate energy-absorbing elements (e.g., elastomeric washers or controlled-deformation zones) to mitigate impact loads from dropped tools, though these are secondary to the primary mechanical lock. All load paths are verified through finite element analysis (FEA) and physical testing to proof load levels (usually 2× working load) before permanent deformation occurs.

Structural components are typically fabricated from hot-rolled or cold-formed carbon steel due to its high strength-to-cost ratio, predictable yield behavior, and ease of fabrication. For load-bearing plates and clamps, minimum thickness ranges from 6–10 mm depending on design geometry and load case, with thicker sections used where bending moments are high. Corrosion protection is critical in outdoor or humid environments; hot-dip galvanizing per ISO 1461 provides uniform zinc alloy layers that offer sacrificial protection and long-term durability, with coating life exceeding 15 years in C3 environments. In mildly corrosive or indoor settings, electro-galvanizing (8–12 μm Zn) with trivalent chromium passivation may be specified, though it offers less edge protection. Stainless steel (e.g., grade 304 or 316) is available upon request for aggressive environments (e.g., chemical plants, coastal zones), though its lower yield strength (~205 MPa for 304 annealed) necessitates increased section thickness to maintain equivalent load capacity. All materials are accompanied by mill test certificates (MTCs) verifying chemical composition and mechanical properties.

Compatibility hinges on precise matching between the attachment’s clamping interface and the scaffold tube’s outer diameter (OD), with common sizes including 48.3 mm (1.5” NPS), 42.4 mm, and 60.3 mm. Attachments are designed to accommodate tube OD tolerances (±0.5 mm per EN 10220) and typical coating buildup (up to 150 μm for galvanized systems) through adjustable clearances or compliant elements like serrated washers. Installation typically requires only standard tools (wrenches, sockets) and follows a sequence: position attachment on scaffold tube, insert ladder rails into receiving sockets or brackets, tighten primary fasteners to specified torque (e.g., 25–35 Nm for M12 bolts), then engage secondary locks. Visual indicators—such as aligned marks, flush pins, or fully seated toggles—help confirm correct engagement. Removal reverses the process, and designs avoid captive parts that could be lost during frequent cycles. Ladder rail compatibility is equally important; attachments must match the ladder’s rail width, thickness, and shape (e.g., rectangular, round, or I-beam) to ensure full bearing and prevent point loading.

*Note: Installation times assume trained personnel and standard tools. Actual times vary with site conditions, accessibility, and fastener condition.

Quality assurance begins with incoming material inspection, where mill test certificates are verified against project specifications, and dimensional checks confirm raw stock conformity (e.g., plate thickness, tube straightness). During fabrication, critical dimensions—such as clamp jaw width, bearing surface radius, and lock pin alignment—are inspected at first article and intervals during production using calibrated gauges or CMMs. Welded assemblies (if any) undergo visual inspection per ISO 5817 and may receive dye penetrant testing for crack detection on tension zones. Finished attachments are subjected to proof load testing at 1.5–2× the rated working load (e.g., 2.25–3.0 kN for a 1.5 kN rating) applied vertically and laterally, with acceptance criteria requiring no permanent deformation, crack formation, or disengagement. Functional testing confirms smooth installation/removal cycles and proper lock engagement under simulated vibration (e.g., 10–50 Hz, 0.5g). Each batch receives a unique traceability code linking to raw material logs, inspection records, and test reports, retained for a minimum of 10 years.

Ladder attachments are essential wherever temporary or semi-permanent vertical access is required on scaffold systems, particularly in environments where ladder stability directly impacts worker safety and task efficiency. In construction, they enable safe ascent to working platforms on façade scaffolds, reducing reliance on climbers or unsafe ladder positioning against the structure. In industrial maintenance (e.g., power plants, refineries), they provide reliable access to equipment at height where dedicated stair towers are impractical, allowing technicians to carry tools and perform inspections without compromising balance. Shipyards use them for access to hull sections and superstructures during dry dock, where corrosion-resistant variants withstand salt-laden air. In modular or suspended scaffolding systems, specialized attachments transfer ladder loads into the primary structure without interfering with adjustment mechanisms. The key advantage lies in transforming a potentially unstable ladder-scaffold interaction into a predictable, code-compliant access point that supports consistent, safe workflow execution across shifts and crews.

While standard configurations cover most common scaffold tube diameters and ladder types, project-specific requirements often necessitate adaptation. Customization options include altered clamp geometry for non-standard tubes (e.g., oval, square, or tapered sections), extended bearing surfaces for wider ladder rails, or integrated tool holders and cable guides. For environments with extreme thermal cycling, materials with matched coefficients of expansion (e.g., specific stainless alloys) may be selected to prevent binding or loosening. Surface treatments can be adjusted—such as duplex systems (hot-dip galvanizing plus epoxy primer) for offshore platforms—or colors changed for site-specific identification (e.g., yellow for high-visibility zones). Engineering support begins with input on scaffold make/model, ladder specifications, load conditions, and environmental factors, followed by design review, prototype validation if needed, and documentation including installation instructions, load certificates, and material traceability. Minimum order quantities for custom items depend on complexity but are often feasible from single units for critical spares or validation.
