A joint coupler connects two scaffolding tubes end-to-end to extend vertical or horizontal runs while maintaining structural continuity. It is a critical load-transfer component in tubular scaffolding systems, designed to resist axial, shear, and bending forces at the joint. Proper selection ensures alignment, prevents slip, and maintains the system’s rated capacity under design loads.
The coupler typically consists of two semi-circular steel housings that clamp around the abutting tube ends using bolts or wedge mechanisms. When tightened, the housing deforms slightly to create a frictional grip that resists longitudinal movement. The design must accommodate tube tolerances while ensuring full contact pressure around the circumference to avoid stress concentrations.
Load transfer occurs through bearing pressure between the tube and coupler housing, supplemented by friction from clamping force. The coupling efficiency depends on surface preparation, bolt torque, and material compatibility. Slippage resistance is verified through static load tests per EN 74 or ANSI/SSFI SC100.5-2004 standards.
Joint couplers are predominantly made from hot-rolled structural steel grades such as S235JR or S355JR, chosen for yield strength, ductility, and weldability. The material must withstand repeated elastic deformation during tightening cycles without cracking. Surface treatment—typically hot-dip galvanizing per ISO 1461—provides corrosion protection for outdoor use, with a minimum zinc coating of 55 µm.
Forged couplers offer superior grain flow and impact resistance compared to cast alternatives, particularly in high-stress applications. Machined couplers provide tighter tolerances but are less common due to cost. Manufacturers select forming methods based on production volume, required mechanical properties, and fatigue life expectations.
Joint couplers are designed for specific tube outer diameters, most commonly 48.3 mm (1.5" NPS) or 48.6 mm in scaffolding systems. Internal dimensions must match the tube OD with allowances for coating thickness and manufacturing tolerances. Mismatched diameters reduce contact area and compromise load capacity.
Some couplers accommodate multiple tube sizes through adjustable inserts or segmented housings, though fixed-size designs are preferred for critical load paths. Compatibility with tube wall thickness (typically 3.2 mm to 4.0 mm) is also essential, as thinner tubes may deform under clamping load, while thicker tubes may not achieve full seating.
The axial load capacity of a joint coupler is derived from the compressive strength of the tube and the frictional resistance of the clamp. Typical working load limits range from 20 kN to 30 kN for 48.3 mm tubes, depending on material grade, bolt size, and torque applied. These values are established through destructive testing and validated via finite element analysis.
Shear and bending resistance are secondary considerations but become significant in eccentric loading or lateral load scenarios. The coupler’s moment resistance depends on the distance between bolt lines and the section modulus of the housing. Designers must verify that combined stresses do not exceed material yield limits under factored loads.
Correct installation requires aligning tube ends concentrically within the coupler before tightening. Misalignment induces bending stresses that reduce capacity. Bolts must be tightened in sequence to specified torque values—typically 50 Nm to 70 Nm for M12 bolts—to achieve uniform clamping force without over-stressing the housing.
Torque control is essential; under-torquing allows slip, while over-torquing can cause tube deformation or housing fracture. Many couplers feature torque-indicating bolts or color-coded washers to aid field verification. Re-torquing after initial load cycling is recommended in long-term installations.

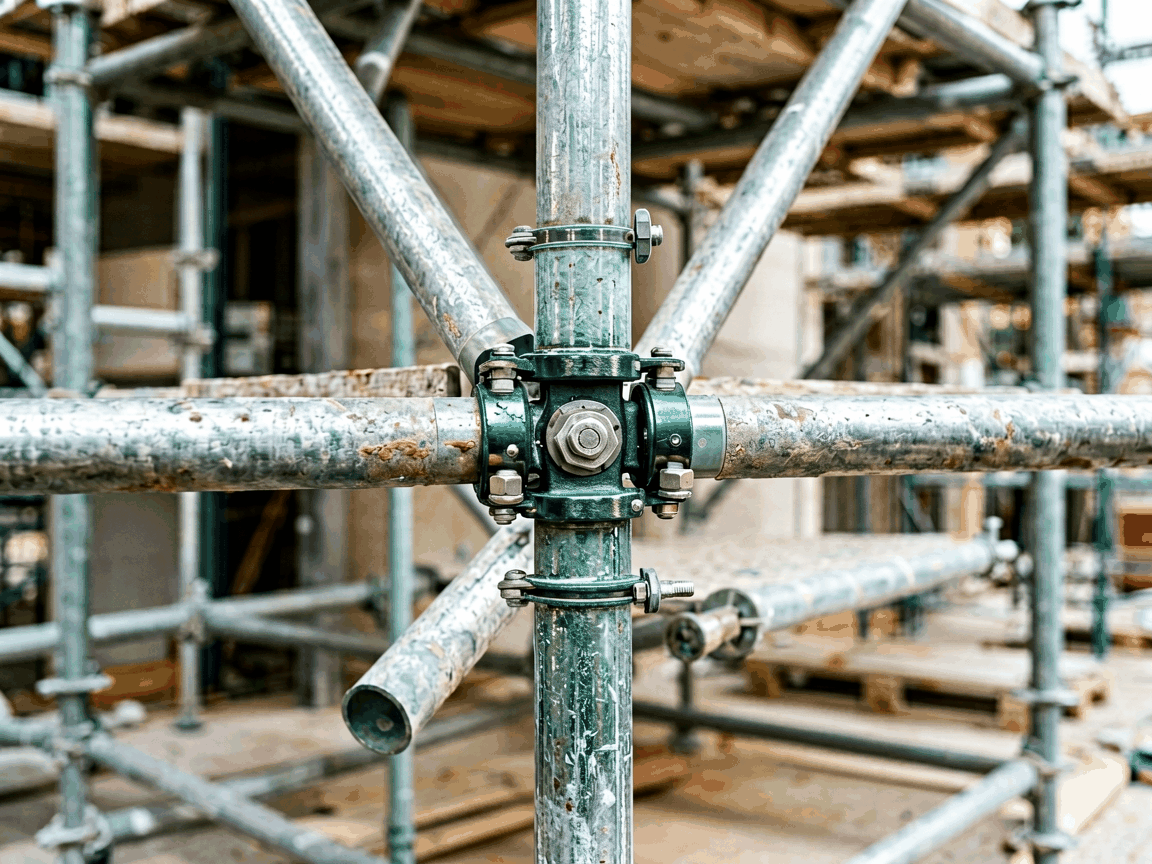

Joint couplers are used in vertical standards to achieve heights beyond single tube lengths, such as in facade access, shoring, or suspended scaffolding. In horizontal ledgers or transoms, they enable longer spans for beam scaffolds or loading bays. Their use eliminates the need for overlapping tubes, which can create irregular surfaces and snag hazards.
In modular systems like ring-lock or cup-lock, joint couplers are less common due to integral node connections, but remain essential in tube-and-clamp scaffolds where flexibility in length adjustment is required. They are also used in temporary works such as concrete formwork support and event staging structures where adaptability is prioritized.
Manufacturing quality begins with material traceability and continues through dimensional inspection of critical features: housing roundness, bolt hole alignment, and wall thickness. Non-destructive testing such as magnetic particle inspection may be applied to detect surface cracks in high-stress areas. Each batch undergoes functional testing to verify clamping force and slip resistance.
Finished couplers are marked with size, material grade, manufacturer ID, and relevant standard (e.g., EN 74) for traceability. Packaging prevents mechanical damage during transit—typically bundled in corrosion-inhibiting wraps or placed in labeled cartons. Documentation includes material certificates and test reports upon request.
| Parameter | Typical Value / Range |
|---|---|
| Tube Outer Diameter | 48.3 mm ± 0.5 mm |
| Material Grade | S235JR, S355JR (hot-rolled steel) |
| Surface Treatment | Hot-dip galvanizing (min 55 µm Zn) |
| Bolt Size | M12, property class 8.8 |
| Recommended Torque | 50–70 Nm |
| Axial Working Load Limit | 20–30 kN (dependent on grade and torque) |
| Applicable Standard | EN 74, ANSI/SSFI SC100.5-2004 |
Selecting the correct joint coupler involves verifying tube dimensions, material compatibility, and load requirements against project specifications. Engineers should confirm that the coupler’s rated capacity exceeds the design load with appropriate safety factors. Documentation of material certificates and test compliance supports due diligence in temporary works design.
For non-standard tube sizes, special coatings, or certified test documentation, custom solutions are available upon request. Consultation with the manufacturer’s technical team ensures that the coupler meets both functional and regulatory expectations for the intended application.
To discuss your scaffolding coupling needs or request a quotation, contact our technical team with your project specifications, including tube dimensions, load conditions, and quantity requirements.
